ENGINEERED FOR SAFE, SECURE LOADING
The ideal tilt slide truck body should be capable of more than just transporting equipment. It must fit your chassis, accommodate your loads, and support the way your operation runs. CTE uses in-house engineering, high-tensile steel construction, and variable loading and restraining systems to create tilt slides that are specifically fitted to the application. Choose from three fundamental configurations, each of which provides a platform for future customisation.
Small Truck Tilt Slide (4x2)
A compact, versatile solution for transporting loads of around 4–6 tonnes, depending on chassis. Ideal for towing businesses, car carriers and equipment hire operators seeking manoeuvrability and everyday practicality.
Mid-Size Truck Tilt Slide (6x4)
Designed for loads of up to 10 tonnes, depending on chassis, the 6×4 tilt slide offers greater carrying capacity for machinery and plant. Ideal for equipment hire, civil contracting and transport operators, it combines a larger tray with a heavy-duty slide design.
Twin Steer Tilt Slide (8x4)
Built for loads of up to 15 tonnes, depending on chassis, the 8×4 tilt slide is designed for larger machinery and demanding applications across mining, infrastructure and government fleets. It delivers a heavy-duty, purpose-configured transport solution.

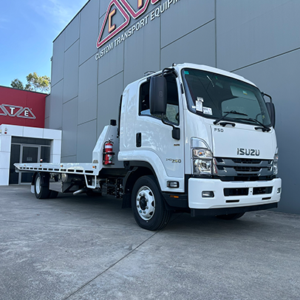

Small Truck Tilt Slide (4x2)
For loads of approximately 4–6 tonnes, depending on chassis
The CTE 4×2 tilt slide is a practical solution for transporting vehicles and equipment on a daily basis. It is compact, versatile, and designed around your needs. Each tilt tray body is configured to fit the chosen chassis, with specifications and choices tailored to the application.
- Tray length configured to suit your chassis, typically 7–8.5 metres overall.
- 10 mm profile-cut side coamings with integrated tie rails and chain slots.
- 150–180 PFC main slide rails on 75 x 40 PFC bearers
- 4–5 mm high-tensile steel floor.
- 12,000–15,000 lb winch with cable tensioner and wireless remote.
- Low or high headboard, with chain boxes on each side and LED lighting.
- Removable container pins with twist-lock support, with an optional container pusher/puller.
- Underbody safety prop, slide-out steps and hinged rear light board.
- Full LED lighting package and reverse alarm.
- Wheel lift and quick-lash restraint system.
- Motorcycle dolly and mounting kit.
- Aluminium ramps with onboard storage.
- Hydraulic stabiliser legs.
- Fall protection.
- Towbar configurations, including removable bars and receivers above the winch.
- Toolboxes, oil and water tanks, fire extinguisher, and shovel and broom rack.
- Beacons, work lights and auxiliary switch panels.
- Paint matched to your truck or fleet colours.

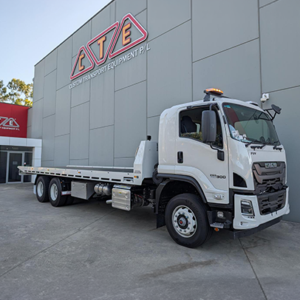

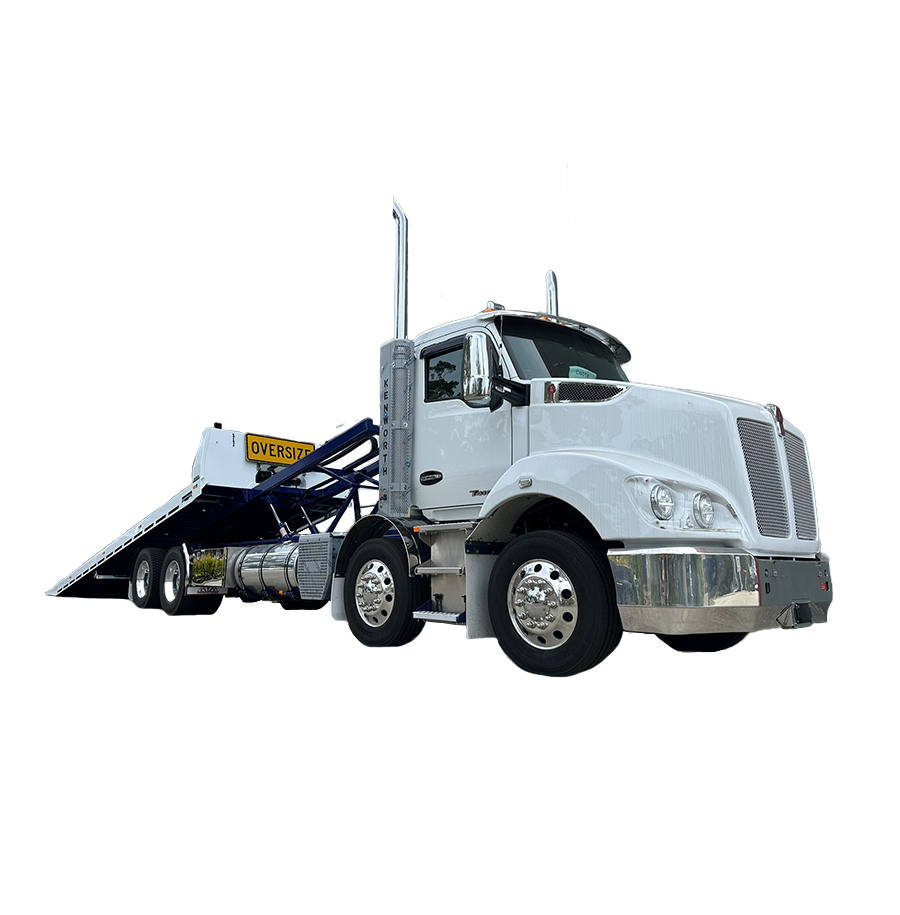

Mid-Size Truck Tilt Slide (6x4)
For loads of approximately 10 tonnes, depending on chassis
When your operation requires more capacity, the CTE 6×4 tilt slide offers a heavier-duty configuration for machinery and larger loads. It has a strengthened sliding system, hydraulic stabiliser legs, and various restraint choices to satisfy the needs of equipment hire, civil contracting, and routine plant transport.
- Tray length configured to suit your chassis, up to 9.6 metres overall.
- 12 mm profile-cut side coamings with integrated tie rails and chain slots.
- 200 PFC main slide rails on 100 x 50 PFC bearers.
- 5 mm high-tensile steel floor.
- 20,000 lb winch with cable tensioner and wireless remote.
- Hydraulic stabiliser legs.
- Telescopic towbar with pintle.
- Full-height or low headboard, with chain boxes and LED lighting.
- Removable container pins with twist-lock supports.
- Full LED lighting package, beacons and reverse alarm.
- Spare wheel carrier.
- Toolbox configurations, including chock boxes.
- Fall protection.
- Oil and water tanks.
- Fire extinguisher, and shovel and broom rack.
- Choice of winch brands and remote configurations.
- Additional floor tie-down points positioned to suit your load.
- Towbar and receiver configurations.
- Paint matched to your truck or fleet colours.

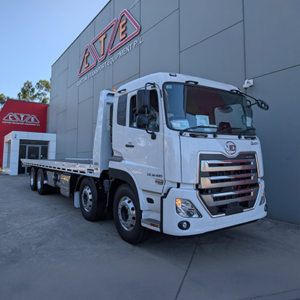

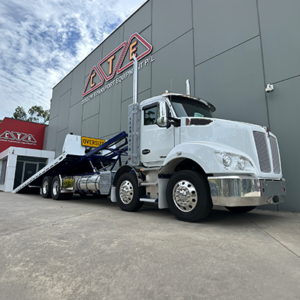

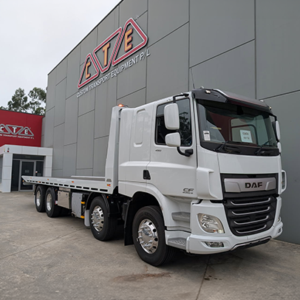

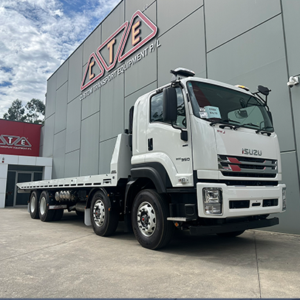

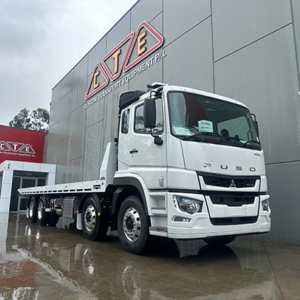

Twin Steer Tilt Slide (8x4)
For loads of up to 15 tonnes, depending on chassis
For larger machinery and heavy plant, the CTE 8×4 twin steer tilt slide is a heavy-duty starting point for a fully tailored build. Reinforced slide rails, a 6mm high-tensile steel floor and an extended tie-down layout let us design it around the equipment you move and how your operation runs.
- Tray length configured to suit your chassis, up to 9.6 metres overall.
- 12 mm profile-cut side coamings with integrated tie rails and chain slots.
- Reinforced 200 PFC main slide rails on 100 x 50 PFC bearers.
- 6 mm high-tensile steel floor.
- 30,000 lb winch with cable tensioner and wireless remote.
- Hydraulic stabiliser legs.
- Telescopic towbar.
- Extended floor tie-down layout, with more than 30 points available.
- Twin steer guards.
- Removable container pins with twist-lock supports.
- Full LED lighting package and reverse alarm.
- Premium winch brands, including Warn.
- Raised coaming lip height for deeper load restraint.
- Larger chain slots.
- Fall protection, including removable poles for three points of contact.
- Oversize signage with storage, and flag holders.
- Stainless steel water tank, oil tank, and fire extinguisher up to 9 kg.
- Toolbox configurations, including chock boxes.
- Spare wheel carrier.
- Lighting configured to your fleet or site requirements
- Paint matched to your truck or fleet colours.
Built Around Your Operation
No two transport operations are exactly the same. That is why CTE sees each tilt slide as a separate engineering project, with the three core configurations serving as a starting point rather than a fixed specification.
From a different tray layout and specialist restraint points to extra storage, lighting and safety gear, our in-house engineering team works with you to design a truck body for the task at hand. We refine every design to fit your chassis, your loads and your operation, with quality and compliance built in from the start.
Frequently Asked Questions
CTE on a wide range of truck chassis, with established partnerships with all major OEMs. Each tilt slide is tailored to your specific chassis and operation needs. Contact us to discuss your truck and the specifications required for your application.
The tare weight and available payload depend on your truck chassis and the tilt slide configuration. Contact our team to discuss your requirements and determine the right setup for your application.
CTE designs tilt slide bodies around individual chassis and operator requirements. To confirm suitability for an existing truck or one on order, contact our sales team with your chassis details and intended application.
Most tilt slides are built to order, so the body can be customised to your specifications. Selected stock units are also available through our truck dealership partners. Contact our team to discuss build timelines or to enquire about current stock availability.
CTE provides support through in-house maintenance, repairs, and refurbishing, as well as a separate spare parts department and technical help. Fleet management assistance is also accessible for operators with multiple units. Please contact our team for information on the appropriate warranty terms.
- Become a Customer
Build Your Tilt Slide Truck Body
Tell us what your operation needs, and our team will work with you to develop a suitable configuration.
Need tilt slide sooner? Selected stock units are available from our partner truck dealerships. View Stock →
Built on Every Major Truck Brand
CTE provides a wide range of truck chassis and has formed collaborations with all major OEMs. Our in-house engineering team designs tilt slide bodies based on the chassis chosen and the operator’s requirements, resulting in a configuration that is appropriate for the intended application.
